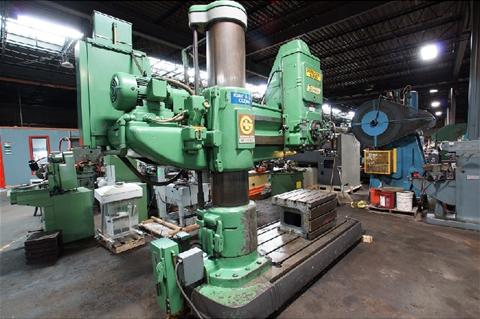

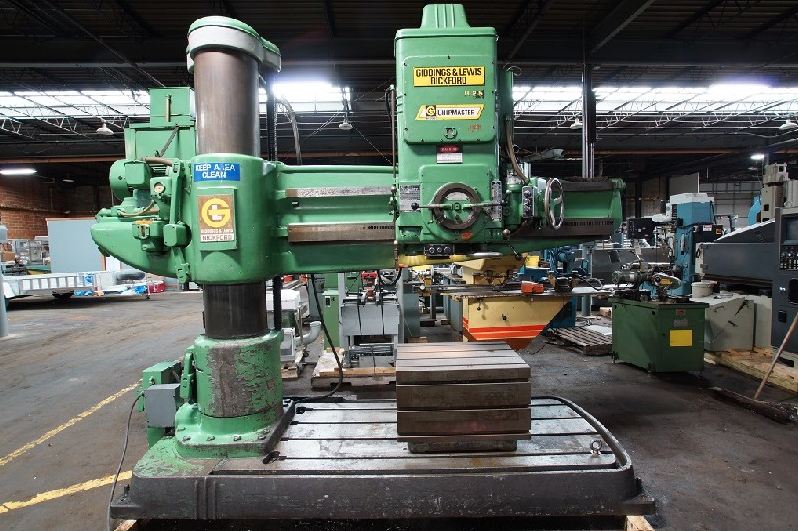

7' x 15" Giddings & Lewis Bickford Chipmaster Radial Arm Drill - Stock #1213, photo 1 of 2

About this machine

The 7' x 15" Giddings & Lewis Bickford Chipmaster Radial Arm Drill (Stock #1213) is a used manual mill listed by Advantage Products Inc. in Corcoran, Minnesota. Key specifications: Spindle Speeds 40 - 1,600 RPM; Spindle Taper #5 Morse; Length of Arm 7 Feet; Diameter of Column 15". Included: Box Table 30" x 24" x 20 H, Tapping (Automatic Tapping Reverse), Power Clamping, Power Rapid Traverse, Rapid Traverse on Head, and more (see the full list below). This machine is no longer available.

Specifications · Stock #1213
Length of Arm7 Feet
Diameter of Column15"
Vertical Travel of Arm35.25"
Minimum Distance, Spindle to Column Face14"
Maximum Distance Spindle to Base18" - 67"
Spindle Taper#5 Morse
Spindle Travel18"
Spindle Speeds40 - 1,600 RPM
Spindle Feeds (9)0.006 to .125 IPR
Main Motor Drive20 HP
Machine Table Base7 Ft X 42"
Overall Dimensions136" x 60" x 110" H
Weight18,000 lbs.

Included with machine

  • Box Table 30" x 24" x 20 H
  • Tapping (Automatic Tapping Reverse)
  • Power Clamping
  • Power Rapid Traverse
  • Rapid Traverse on Head
  • Work light
  • Coolant
  • Wired 440V 3 Phase, 25 Amp
  • Operation, Installation & Maintenance Manual
Machine wanted

Looking for a machine like this?

This opens your email app with the request filled in, addressed to sales@advantagecnc.com.

Prefer to talk? Call (763) 439-9347.

FAQ

Common questions

What spindle and tool changer does it have?

Spindle speed 40 - 1,600 RPM, spindle taper #5 Morse.

What electrical supply does it need?

As recorded on the listing: Wired 440V 3 Phase, 25 Amp. Confirm against your plant supply before purchase.

Is the 7' x 15" Giddings & Lewis Bickford Chipmaster Radial Arm Drill still available?

No. This machine is no longer available. If you want something similar, tell us what you are looking for or call (763) 439-9347.
