About this machine

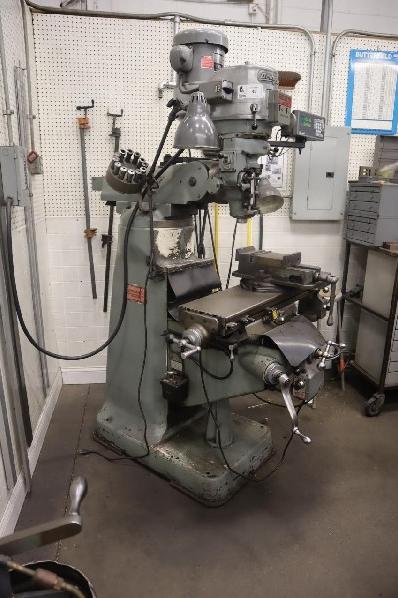

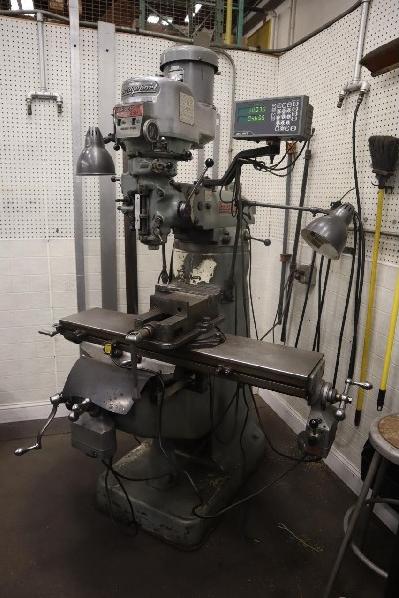

The 1977 Bridgeport Series I Variable Speed Mill (Stock #1632) is a used manual mill listed by Advantage Products Inc. in Corcoran, Minnesota. Key specifications: Spindle Taper R8 Collet; Spindle Motor 2 HP; Table 9" X 42"; Longitudinal Travel 30". Included: 2- Axis Acu-Rite Digital Readout, 6" Kurt Vise on Swivel Base, (2) Sets of Jaws on Vise inside and outside, Hold Down Gear, Collet Racks with R8 Collets, and more (see the full list below).

Specifications · Stock #1632

Table	9" X 42"
Longitudinal Travel	30"
Cross Travel	12"
Quill	5"
Knee	16"
Spindle (Variable)	60 - 4,200 RPM (High and Low)
Spindle Motor	2 HP
Spindle Taper	R8 Collet
Electrical	220V / 3 Ph
Dimensions	58" x 50" x 78" (H)
Approx Weight	2,500 lbs.

Included with machine

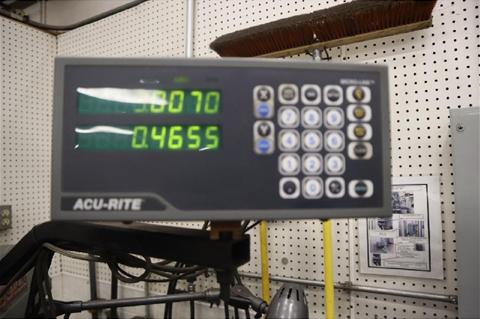

• 2- Axis Acu-Rite Digital Readout

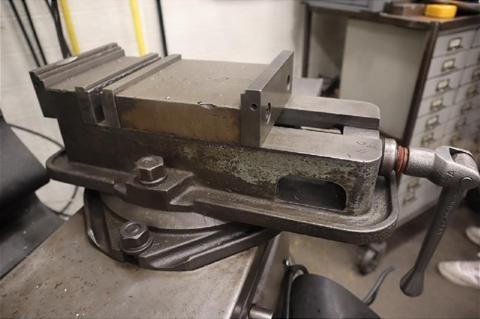

• 6" Kurt Vise on Swivel Base
• (2) Sets of Jaws on Vise inside and outside
• Hold Down Gear

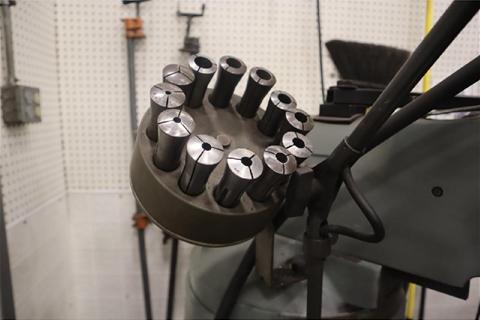

• Collet Racks with R8 Collets
• One-Shot Lube
• X & Y axis Servo Power Feeds
• Knee Handle
• Worklights
• Manuals
