About this machine

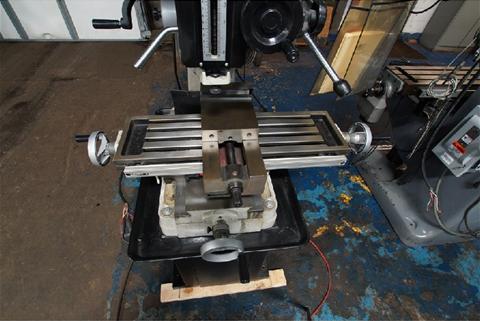

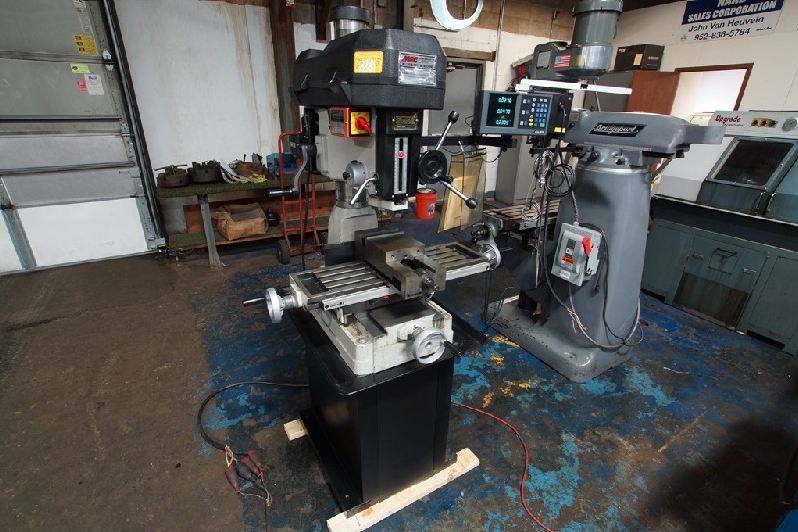

The 1997 MSC Variable Speed Pulley Mill Drill Machine (Stock #1191) is a used manual mill listed by Advantage Products Inc. in Corcoran, Minnesota. Key specifications: Spindle Speeds 50 - 2,500 RPM; Table Sizes 8.25" X 28.75"; Longitudinal Travel 18.125"; Cross Travel 7.5". Included: Complete w/ 3 Axis Acu-Rite DRO, X,Y,Z, 6" Vise, Spindle Speed Control, Variable Speed Pulley, Number of T-Slots: 4, and more (see the full list below). This machine is no longer available.

Specifications · Stock #1191

Table Sizes	8.25" X 28.75"
Longitudinal Travel	18.125"
Cross Travel	7.5"
Number of Spindle Speeds	12
Spindle Speeds	50 - 2,500 RPM
Spindle Travel Length	5"
Spindle Taper Size	R8
Drilling Capacity in Steel	1.25"
Drilling Capacity in Cast Iron	1.25"
Tapping Capacity in Steel	0.625"
Quill Diameter	4.5276"
Spindle Power Feed Rate Per Minute	0.12; 0.18; 0.25 (mm/rev)
Maximum Spindle To Column Distance	8.0709"

Included with machine

• Complete w/ 3 Axis Acu-Rite DRO, X,Y,Z
• 6" Vise
• Spindle Speed Control
• Variable Speed Pulley
• Number of T-Slots: 4
• T-Slot Size (mm): 16 x 26
• Head Swivel:360.00
• Horsepower (HP): 2
• Phase 3 , Voltage :220
