About this machine

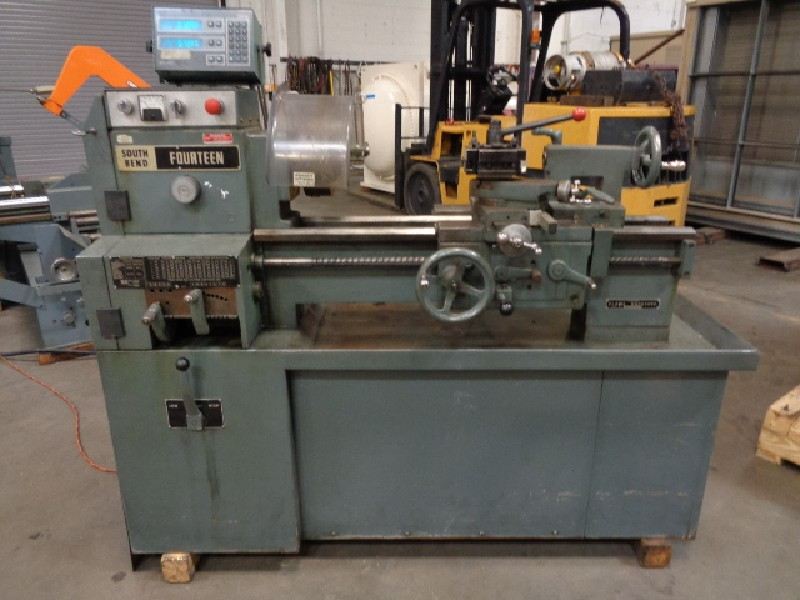

The Southbend Fourteen Engine Lathe (Stock #1328) is a used manual lathe listed by Advantage Products Inc. in Corcoran, Minnesota. Key specifications: Distance Between Centers 32"; Swing Over Bed 14"; Swing Over Ways 8.5"; Length of Bed 40". Included: (2) Axis Mill Mate DRO, 8" (3) Jaw Chuck, Inch Threading, Dorian Tool (4) Way Post, Tail Stock. This machine is no longer available.
| Swing Over Bed | 14" |
|---|---|
| Swing Over Ways | 8.5" |
| Distance Between Centers | 32" |
| Length of Bed | 40" |
| Spindle Speed (Lo / Hi) | 50 - 300; 300 -1800 RPM |
| Diameter of Spindle Hole | 1.5" |
| Number of Threads and Feeds | 48 |
| Threads Per Inch | 4 TO 224 |
| Longtudinal Feeds | 0.0015 - 0.0841 |
| Electrical | 220v / 3 Ph |
| Foot Print | 70" (LR) x 27" (FB) x 52" (T) |
Included with machine

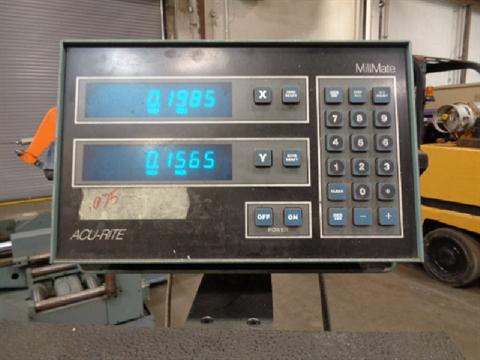

- (2) Axis Mill Mate DRO
- 8" (3) Jaw Chuck
- Inch Threading
- Dorian Tool (4) Way Post
- Tail Stock
FAQ
Common questions
What electrical supply does it need?
As recorded on the listing: 220v / 3 Ph. Confirm against your plant supply before purchase.
Is the Southbend Fourteen Engine Lathe still available?
No. This machine is no longer available. If you want something similar, tell us what you are looking for or call (763) 439-9347.
