About this machine

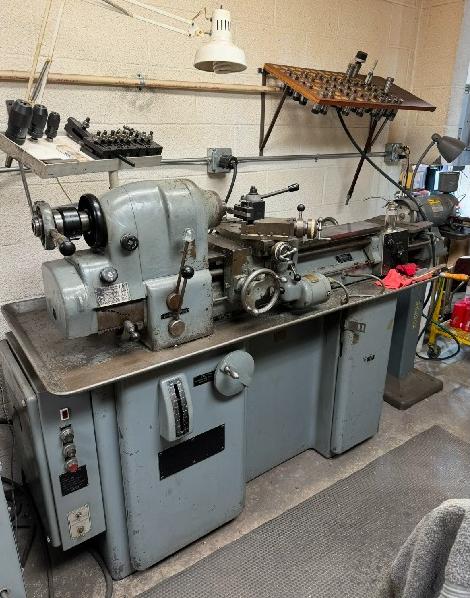

The Hardinge HLV Tool Room Lathe (Stock #1515) is a used manual lathe listed by Advantage Products Inc. in Corcoran, Minnesota. Key specifications: Swing Over Bed 11"; Swing Over Carriage 9"; Swing Over Cross Slide 6"; Center Distance 18". Included: (3) Jaw Chuck, 5C Collet Closer, Tool Post, Tailstock, Coolant Pump System, and more (see the full list below).

Specifications · Stock #1515

Swing Over Bed	11"
Swing Over Carriage	9"
Swing Over Cross Slide	6"
Center Distance	18"
Compound Slide Travel	3"
Spindle Thru Hole	1-1/4"
Spindle Capacity Round 5C Collets	1- 1/16"
Spindle Capacity Hexagon 5C Hardinge Collets	7/8"
Spindle Capacity Square 5C Hardinge Collets	3/4"
Step Chucks	1-1/16" to 6"
Chuck Jaws	5"
Expanding Collets	3"
Spindle Nose Diameter	2.189"
Spindle Speeds (Infinite Variable)	125 - 3,000 RPM
Spindle Nose	Hardinge Taper
Threading (27)	11" - 108" TPI
Carriage Power Feed	5/16" - 7" IPM
Cross Slide Power Feed	3/16" - 4" IPM
Tailstock Spindle Diameter	1-3/8"
Tailstock Spindle Travel	3-3/4"
Tailstock Spindle Taper	#2 MT
Machine Dimensions	65" x 28" x 58"
Machine Weight	1,700 Lbs.

Included with machine

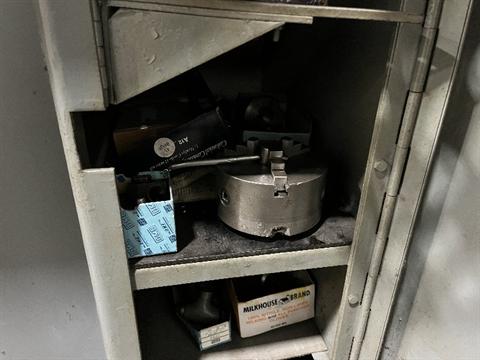

• (3) Jaw Chuck
• 5C Collet Closer
• Tool Post
• Tailstock
• Coolant Pump System
• All Available Tooling
