About this machine

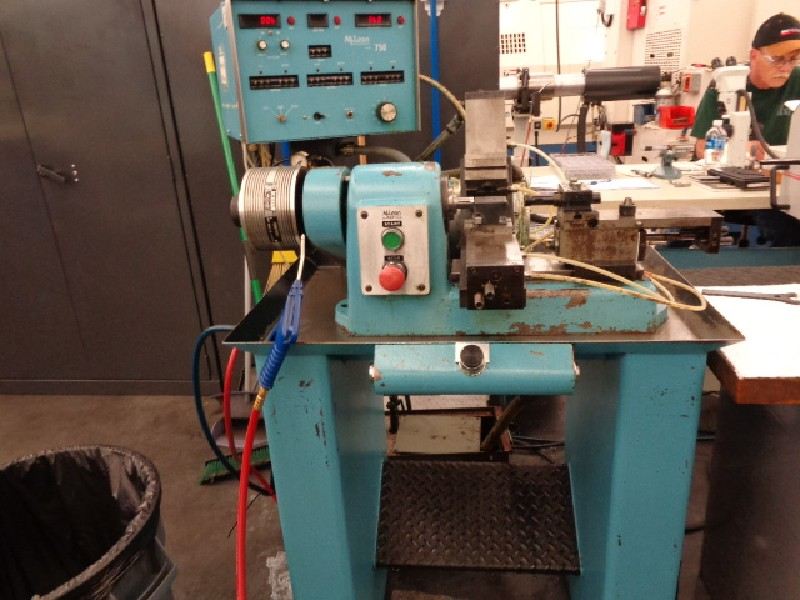

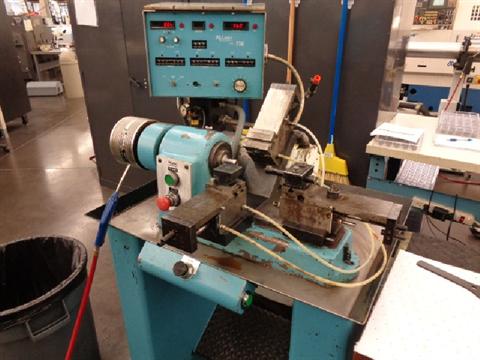

The 750 (3 Axis) Production Lathe (Stock #1179) is a used manual lathe listed by Advantage Products Inc. in Corcoran, Minnesota. Key specifications: Spindle Speeds 60 - 2100 RPM Variable; Spindle Motor 1 HP; Swing Over Bed 9"; Spindle Capacity 5C Hardinge Collets 1-1/16" Diameter. Included: Tail Slide, Tail Slide Subplate, Front Slide, Rear Slide, Front & Rear Subplate, and more (see the full list below). This machine is no longer available.
| Swing Over Bed | 9" |
|---|---|
| Spindle Capacity 5C Hardinge Collets | 1-1/16" Diameter |
| Spindle Motor | 1 HP |
| Brake | Dynamic |
| Dovetail Width | 3-3/8" |
| Spindle Centerline to Dovetail | 4-1/2" |
| Length of Bed from Face of Spindle | 13" |
| Spindle Speeds | 60 - 2100 RPM Variable |
| Air Requirements | 80 - 100 PSI |
| Machine Dimensions | 57.5" x 39.75" x 35" |
| Machine Weight | 650 Lbs. |
Included with machine
- Tail Slide
- Tail Slide Subplate
- Front Slide
- Rear Slide
- Front & Rear Subplate
- Electrical Lockout Switch
- Slide Valve for Air On and Off
- Wired 220V/60/1 Ph
- All Available Information
FAQ
Common questions
What spindle and tool changer does it have?
Spindle speed 60 - 2100 RPM Variable.
What electrical supply does it need?
As recorded on the listing: Wired 220V/60/1 Ph. Confirm against your plant supply before purchase.
Is the 750 (3 Axis) Production Lathe still available?
No. This machine is no longer available. If you want something similar, tell us what you are looking for or call (763) 439-9347.
