STOCK #1515Hardinge HLV Tool Room Lathe
- Swing Over Bed
- 11"
- Swing Over Carriage
- 9"
- Swing Over Cross Slide
- 6"
About this machine

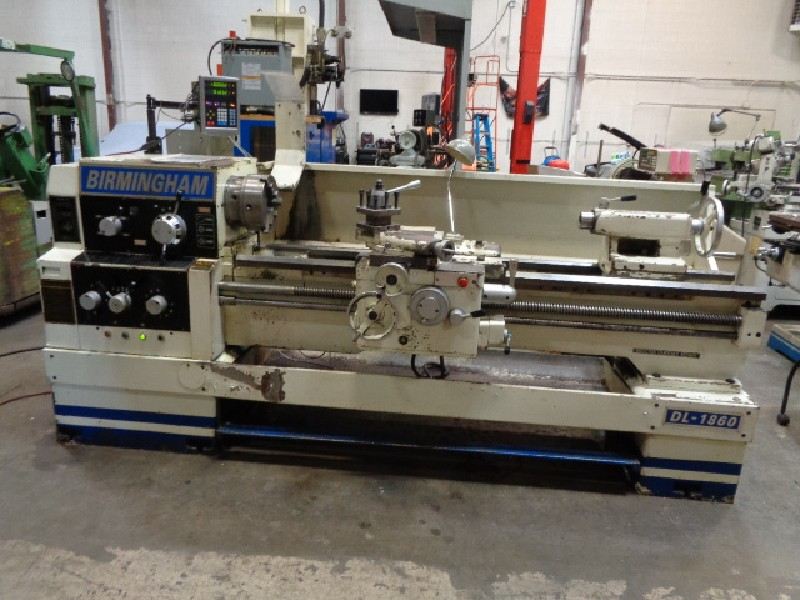

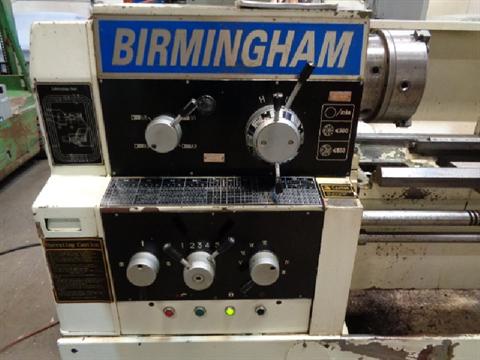

The 2007 Birmingham DL-1860 Engine Lathe (Stock #1319) is a used manual lathe listed by Advantage Products Inc. in Corcoran, Minnesota. Key specifications: Spindle Taper D1-8; Distance Between Centers 60"; Swing Over Bed 18"; Swing Over Carriage 8.625". Included: (2) Axis DRO, (3) Jaw Chuck, Inch & Metric Threading, (4) way Tool Post, Tailstock, and more (see the full list below). This machine is no longer available.
| Swing Over Bed | 18" |
|---|---|
| Swing Over Carriage | 8.625" |
| Swing Over Gap | 27.5" |
| Distance Between Centers | 60" |
| Spindle Speeds (14) | 16 - 1,600 RPM |
| Diameter of Spindle Hole | 3.1875" |
| Spindle Taper | D1-8 |
| Main Motor | 10 HP |
| Foot Print | 105" (LR) x 47.5 (FB) x 53.75 |
| Electrical | 220v or 440v / 3 Ph |
Included with machine
- (2) Axis DRO
- (3) Jaw Chuck
- Inch & Metric Threading
- (4) way Tool Post
- Tailstock
- Travel Dial
- Coolant
- All Available Manuals
FAQ
Common questions
What spindle and tool changer does it have?
spindle taper D1-8.
What electrical supply does it need?
As recorded on the listing: 220v or 440v / 3 Ph. Confirm against your plant supply before purchase.
Is the 2007 Birmingham DL-1860 Engine Lathe still available?
No. This machine is no longer available. If you want something similar, tell us what you are looking for or call (763) 439-9347.
