About this machine

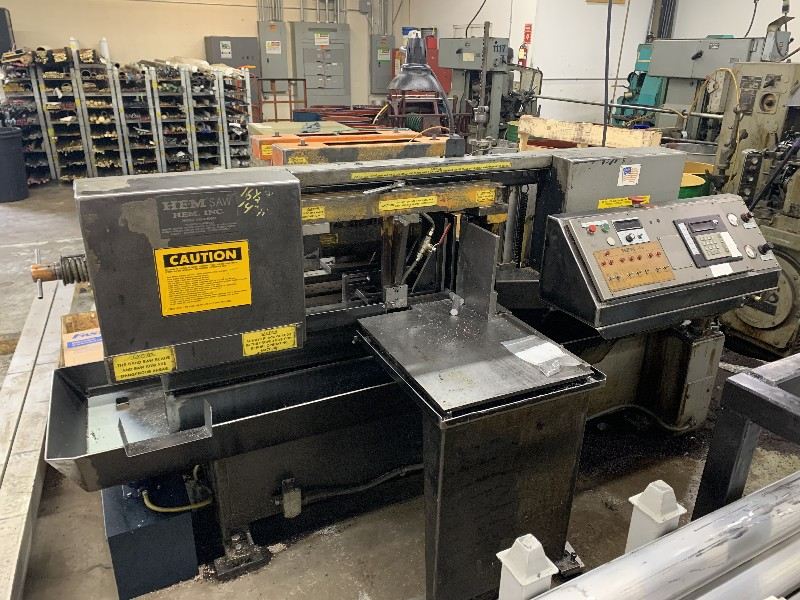

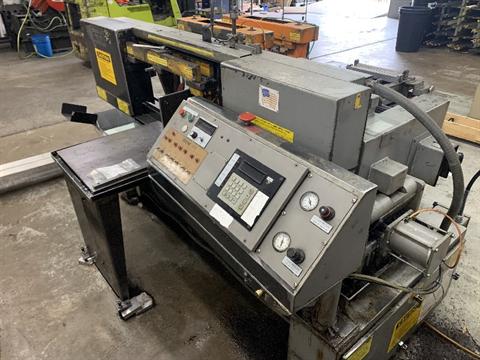

The 1997 HEM H105A Horizontal Automatic Band Saw (Stock #1311) is a used saw listed by Advantage Products Inc. in Corcoran, Minnesota. Key specifications: Rectangular Capacity 16" x 14"; Round Capacity 16"; Main Drive Motor 7.5 HP; Hydraulic Bar Feed 0-24" Stroke. Included: Adjustable Clamping Force, Adjustable Cutting Force, Adjustable Feed Rate, Adjustable Main & Feed Vise, Air Powered Blade Tension, and more (see the full list below). This machine is no longer available.
| Rectangular Capacity | 16" x 14" |
|---|---|
| Round Capacity | 16" |
| Main Drive Motor | 7.5 HP |
| Hydraulic Bar Feed | 0-24" Stroke |
| Blade Size | 15'0" x 1.25"x .042" |
| Dimensions | 109" x 88" x 60" |
| Weight | 6,800 lbs. |
| Electrical | 220V/440V/3PH |
Included with machine
- Adjustable Clamping Force
- Adjustable Cutting Force
- Adjustable Feed Rate
- Adjustable Main & Feed Vise
- Air Powered Blade Tension
- Blade Brush
- Broken Blade Indicator
- Carbide Blade Guides
- Chip Auger System
- Computer Controlled Feed System
- Cut Watcher System
- Easy View Console - All Function Control
- Flood Coolant System w/ Wash-Down Hose
- Manual Guide Arm Adjustment
- Push Button Blade Speed w/ LED Readout
- Safety Guards
- Vertical Alignment Roller on Feed
- Coolant System
- Misc. Blades
FAQ
Common questions
What electrical supply does it need?
As recorded on the listing: 220V/440V/3PH. Confirm against your plant supply before purchase.
What control does it use?
The listing shows: Computer Controlled Feed System.
Is the 1997 HEM H105A Horizontal Automatic Band Saw still available?
No. This machine is no longer available. If you want something similar, tell us what you are looking for or call (763) 439-9347.
