About this machine

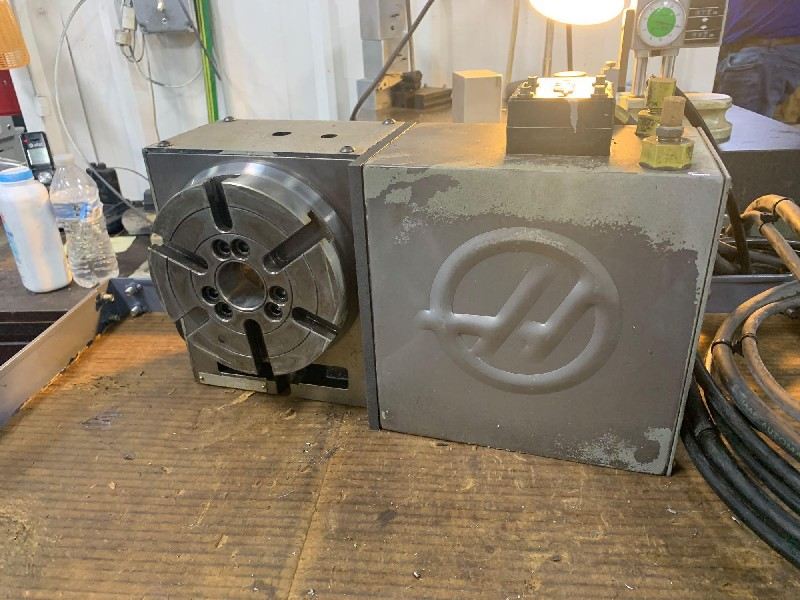

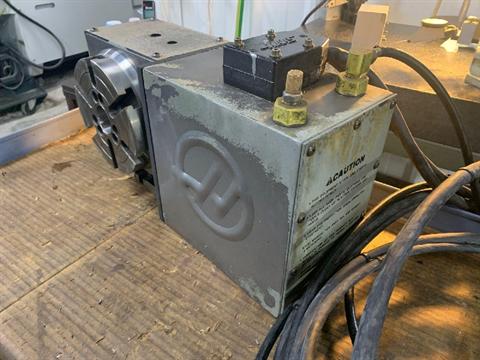

The 2004 Haas HRT160 4th Axis Rotary Table (Stock #1340) is a used indexer listed by Advantage Products Inc. in Corcoran, Minnesota. Key specifications: Platter Diameter 6.30"; Max Weight on Platter (supported) 90 lbs.; Max Weight on Platter (unsupported) 40 lbs.; T-Slots 6. Included: Brushless Sigma 1 Motor. This machine is no longer available.

Specifications · Stock #1340

Platter Diameter	6.30"
Max Weight on Platter (supported)	90 lbs.
Max Weight on Platter (unsupported)	40 lbs.
T-Slots	6
Max Speed	130 Degree/Sec
Max Torque	150 lbs./ft
Max Runout	0.0005"
Center Height	5"
Backlash	30 Arc/Sec
Brake Torque	100 psi/6.9 bar
Gear Ratio	63:1
Timing	2:1

Included with machine

• Brushless Sigma 1 Motor
