About this machine

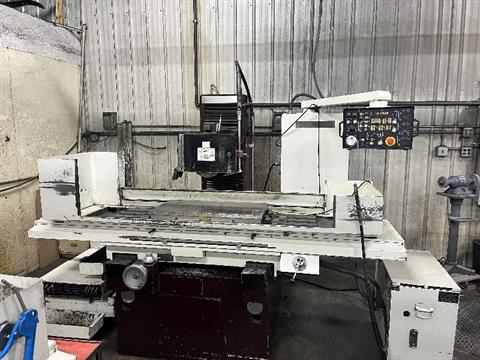

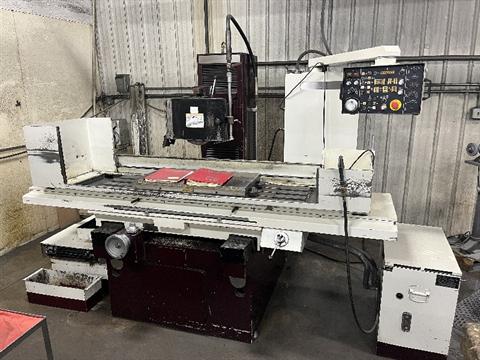

The Chevalier FSG-1632 ADII Automatic Hydraulic Surface Grinder (Stock #1599) is a used grinder listed by Advantage Products Inc. in Corcoran, Minnesota. Key specifications: Spindle Motor 5 HP; Maximum Grinding 15.75" x 31.5"; Max Longitudinal Grind 32"; Max Cross Grind 16". Included: Fine Line Magnetic Chuck, Incremental Down Feed, Coolant System and Pump With Paper Filtration, All Available Manuals and Tooling.

Specifications · Stock #1599

Maximum Grinding	15.75" x 31.5"
Max Longitudinal Grind	32"
Max Cross Grind	16"
Max Distance Table to Spindle	24.75"
Motor Speed (60 Hz)	1,750 RPM
Spindle Motor	5 HP
Longitudinal Table Travel
Hydraulic	33.4375"
Hand	35.375
Cross Transverse Travel
Automatic Transverse Increments	1/8" - 1.25"
Max Automatic Transverse Travel	16"
Hand Feed per Revolution	0.25"
Graduation of Handwheel	0.0025"
Vertical Hand Wheel Infeed
Automatic Infeed	0.00005" - 0.002"
Wheel Diameter	12" (60 Hz) / 14" (50 Hz)
Wheel Width	1.5"
Total Space Required	132" x 68" x 88" (H)
Weight	6,500 Lbs

Included with machine

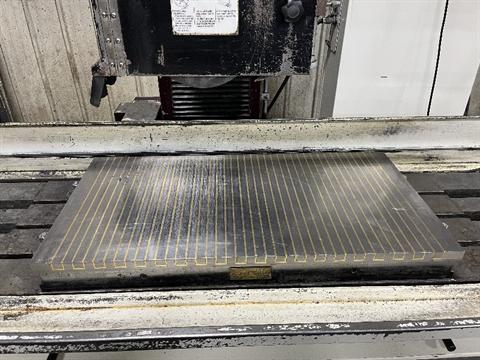

• Fine Line Magnetic Chuck
• Incremental Down Feed

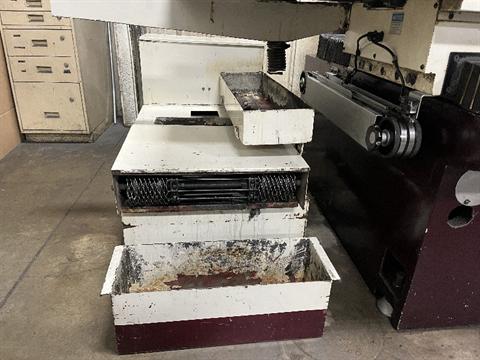

• Coolant System and Pump With Paper Filtration
• All Available Manuals and Tooling
