About this machine

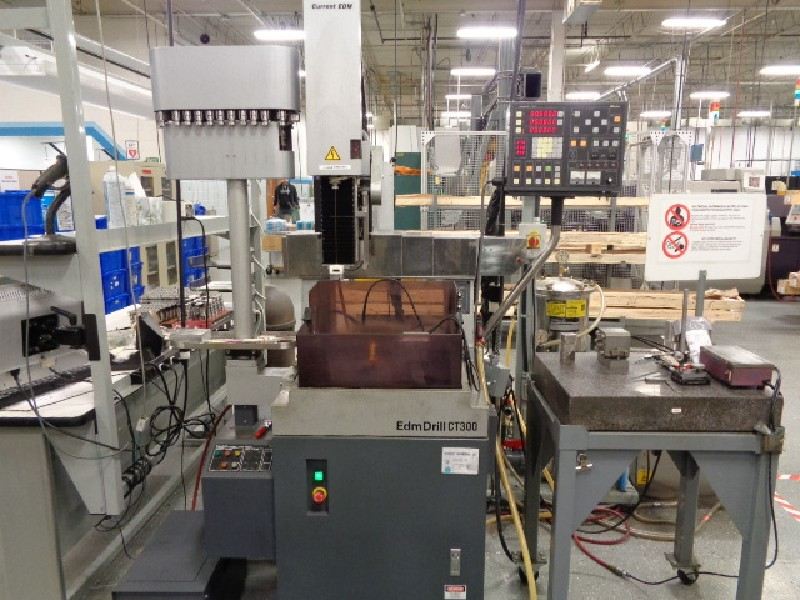

The 2010 Current EDM CT300 CNC EDM Drilling Machine (Stock #1183) is a used EDM machine listed by Advantage Products Inc. in Corcoran, Minnesota. Key specifications: Tool Capacity 24 Station; Max. Workpiece 12" X 12"; X Axis Travel 12"; Y Axis Travel 8". Included: EDM Drill CT300 CNC Controller, Filtration System, Precision Drilling Head with 16 inch Servo Stroke, 57 Peak Amp Power Supply, High-Pressure Dielectric Fluid Pump, and more (see the full list below). This machine is no longer available.
| Max. Workpiece | 12" X 12" |
|---|---|
| X Axis Travel | 12" |
| Y Axis Travel | 8" |
| Z Axis Travel | 16" |
| W Axis Travel | 10" |
| Hole Diameter (Min) | 0.004" |
| Hole Diameter (Max) | 0.25" |
| Tool Capacity | 24 Station |
| Machine Dimensions | 24" x 28" x 78" H |
| Machine Weight (w/Filtration Unit) | 1,000 Lbs. |
| Voltage Power | 208 - 220V /3 Phase |
Included with machine

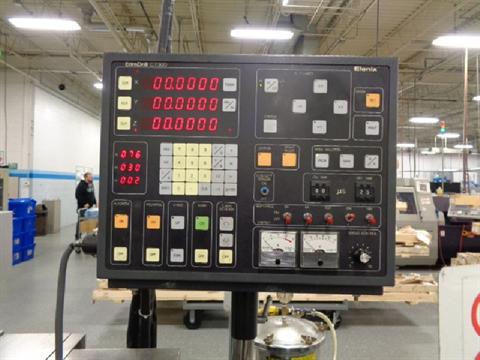

- EDM Drill CT300 CNC Controller
- Filtration System
- Precision Drilling Head with 16 inch Servo Stroke
- 57 Peak Amp Power Supply
- High-Pressure Dielectric Fluid Pump
- All Available Manuals
FAQ
Common questions
What control does it use?
The listing shows: EDM Drill CT300 CNC Controller.
Is the 2010 Current EDM CT300 CNC EDM Drilling Machine still available?
No. This machine is no longer available. If you want something similar, tell us what you are looking for or call (763) 439-9347.
