About this machine

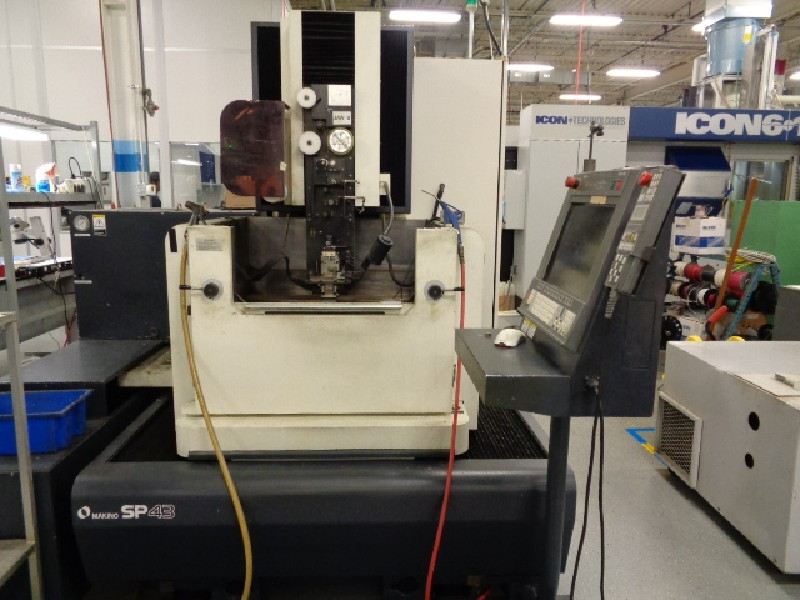

The 2007 Makino SP43 Wire EDM (Stock #1162) is a used EDM machine listed by Advantage Products Inc. in Corcoran, Minnesota. Key specifications: Wire Diameter 0.004" - 0.012"; Max Work Piece Dimensions 33.5" x 28.3" x 12.6"; Workpiece Weight 1,764 Lbs.; Work Table Dimensions 28.7" x 22.8". Included: MGW-S5 CNC Control, Dual Jet Automatic Wire Threader, Di Electric System w/ Filters, DiElectric Chiller, Submersible Cutting, and more (see the full list below). This machine is no longer available.

Specifications · Stock #1162

Max Work Piece Dimensions	33.5" x 28.3" x 12.6"
Workpiece Weight	1,764 Lbs.
Work Table Dimensions	28.7" x 22.8"
Machine Range	17.7" x 11.8" x 12.6"
Taper Angle	15°@ 3.9"
UV Travel	+/- 3.9"
Factory Rated Cutting Speed	31 sq/in/hr.
Wire Spool Capacity	22 lbs. (P-10)
Wire Diameter	0.004" - 0.012"
Max. Workpiece AWF Height	12.0"
Dielectric Capacity	264 Gallons
Machine Dimensions	161" L-R x 118" F-B x 97" H
Machine Weight	9,100 Lbs.
Input Power (Total)	230V - 3 Phase - 21KVA

Included with machine

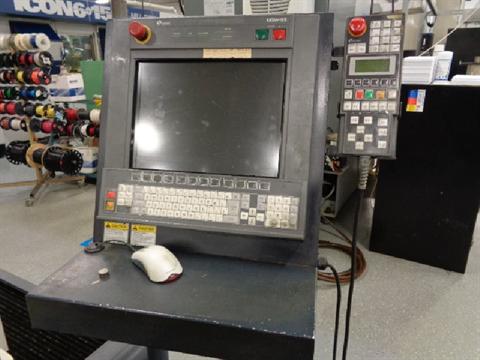

• MGW-S5 CNC Control
• Dual Jet Automatic Wire Threader
• Di Electric System w/ Filters
• DiElectric Chiller
• Submersible Cutting
• LL High Frequency AC Generator
• V Wire Guide System
• RS232
• Advanced Remote Hand Pendant
• Color CRT
• All Available Manuals
