About this machine

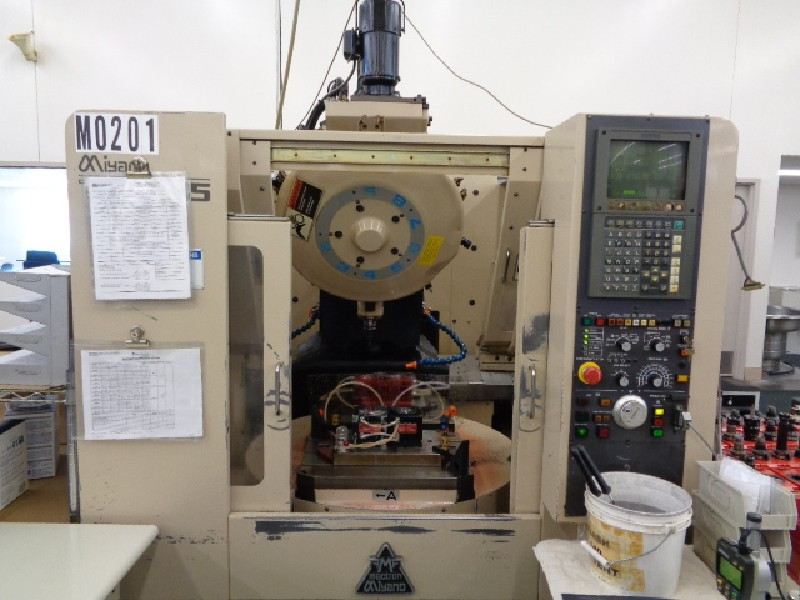

The Miyano TSV-C35 CNC Drill & Tap Center with Pallet Changer (Stock #1182) is a used CNC vertical machining center listed by Advantage Products Inc. in Corcoran, Minnesota. Key specifications: X Travel 19.69"; Y Travel 14.96"; Z Travel 7.87"; Table Size 19.69" X 14.96". Included: Yasnac i80MB CNC Control, Coolant System, RS 232, Rigid Tapping, Misc. Tool Holders, and more (see the full list below). This machine is no longer available.

Specifications · Stock #1182

Table Size	19.69" X 14.96"
X Travel	19.69"
Y Travel	14.96"
Z Travel	7.87"
Spindle Speeds	80 - 8,000 RPM
Spindle Taper	BT 30
Tool Capacity	10 ATC
Max Tool Diameter	2"
Max Tool Length	7.87"
Max Tool Weight	3.3 Lbs
Spindle Motor	6 HP
Rapid Traverse (X,Y)	1181 IPM
Rapid Traverse (Z)	945 IPM
Chip to Chip	3.5 Sec
Machine Dimensions	59" LR x 75" FB x 84.72" H
Machine Weight	4,400 Lbs.

Included with machine

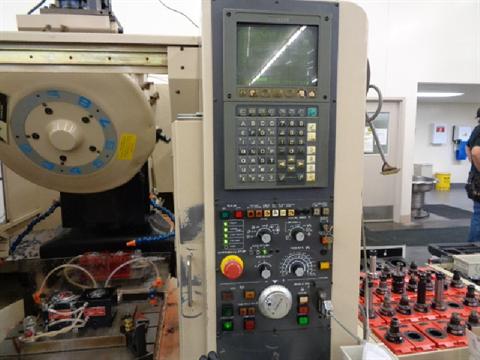

• Yasnac i80MB CNC Control
• Coolant System
• RS 232
• Rigid Tapping
• Misc. Tool Holders
• All Available Manuals
