About this machine

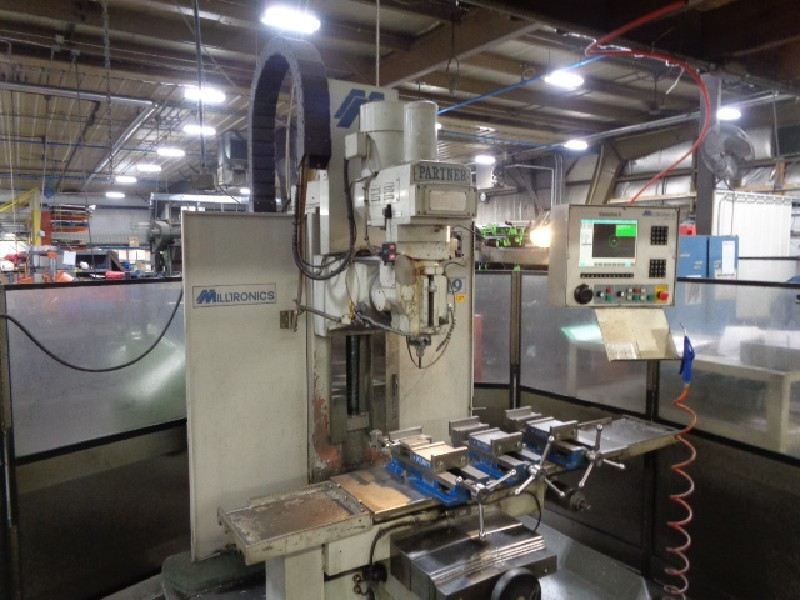

The Milltronics MB-19 (3) Axis CNC Mill (Stock #1346) is a used CNC vertical machining center listed by Advantage Products Inc. in Corcoran, Minnesota. Key specifications: X Travel 35"; Y Travel 19"; Z Travel 22.5"; Table Size 50" x 30". Included: Centurion 6, 3-Axis CNC Control, Power Quill Feed, Programmable Z-Axis Head Feed, Variable Spindle Speeds, Power Draw Bar, and more (see the full list below). This machine is no longer available.

Specifications · Stock #1346

Table Size	50" x 30"
Power or Hand Feed Quill Travel	6"
X Travel	35"
Y Travel	19"
Z Travel	22.5"
Spindle Speeds	40 - 6,000 RPM
Spindle Taper	#40
Spindle to Column Distance	20"
Rapid Traverse (X/Y/Z):	500 / 500 / 300 IPM
Table Load	1,500 Lbs.
Spindle Motor	7.5 HP
Electrical	230 Volt 3-Phase
Foot Print	84" x 75" x 94" Tall
Weight (approx)	6,000 Lbs.

Included with machine

• Centurion 6, 3-Axis CNC Control
• Power Quill Feed
• Programmable Z-Axis Head Feed
• Variable Spindle Speeds
• Power Draw Bar
• RS232 Port
• Coolant System
• Work Light
• All Available Manuals
