About this machine

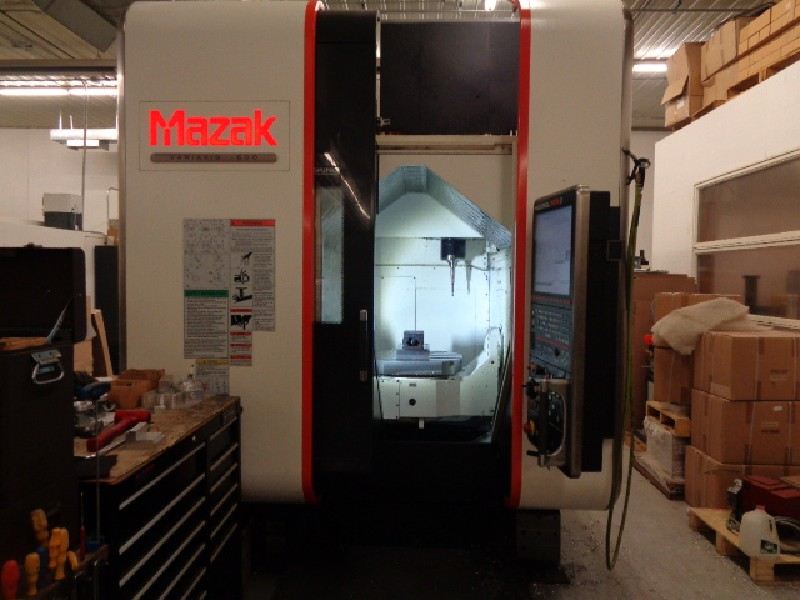

The 2013 Mazak Variaxis i600 CNC Vertical Turning Center (Stock #1300) is a used CNC vertical machining center listed by Advantage Products Inc. in Corcoran, Minnesota. Key specifications: X Travel 20"; Y Travel 38.5"; Z Travel 40"; Spindle Speeds 12,000 RPM. Included: MAZATROL MATRIX 2 CNC CONTROL, MAZAK SUPERFLOW S8 HIGH PRESSURE COOLANT SYSTEM, EIA, SPIRAL, EIA 3D COMP, RENISHAW RMP600 PROBE, HIGH SMOOTHING CONTROL, and more (see the full list below). This machine is no longer available.

Specifications · Stock #1300

Table Size (1 Pallet)	23.62" x 19.69"
Weight On Table	500 Lbs.
Maximum Workpiece Size	27.5" x 17.72"
Spindle Nose To Table	2.76" ~ 22.83"
X Travel	20"
Y Travel	38.5"
Z Travel	40"
A Travel	-120 ~ +30 Degrees
C Axis Indexing	360 Degrees
Spindle Speeds	12,000 RPM
Main Spindle Horse Power	35 HP
Spindle Taper	CAT #40
Tool Capacity	40 ATC
Rapid Traverse X, Y, Z	2362, 2362, 2204 IPM
Cutting Feed Rate	2204 IPM
Machine Weight	28,600 Lbs.

Included with machine

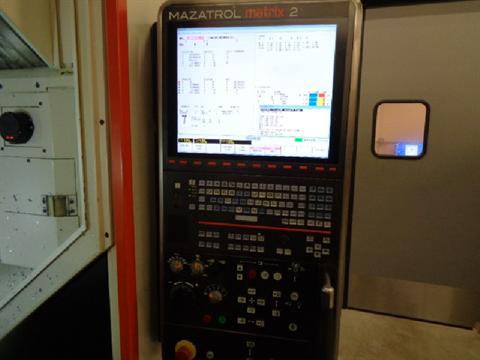

• MAZATROL MATRIX 2 CNC CONTROL
• MAZAK SUPERFLOW S8 HIGH PRESSURE COOLANT SYSTEM
• EIA, SPIRAL, EIA 3D COMP
• RENISHAW RMP600 PROBE
• HIGH SMOOTHING CONTROL
• ROTATION, GEOMETRIC, AND SCALING
• THREAD, INVERSE TIME, COMPARISON STOP
• AUTO ATLM
• SPLINE
• SYNC. MILL TAPPING
• ROT-AXIS SHAPE COMP.
• VARIABLE 600 SETS
• SIMULTANEOUS 5 AXIS
• TILTED WORKPLANE
• TOOL CENTER POINT CONTROL
• 5-AXIS SPLINE
• EXT-DATA I/O, HIGH SPEED, SHAPE COMP.
• DYNAMIC COMP.
• POLAR COORDINATE INPUT
• G54.1
• INCH/MM CONVERT
• G00 SLOPE CONSTANT
• CYLINDER
• EIA HELICAL TAP AND PATTERN CYCLES
• 5-AXIS TOOL COMP.
• PROGRAM MEMORY EXPANSION
• CHIP CONVEYOR
