About this machine

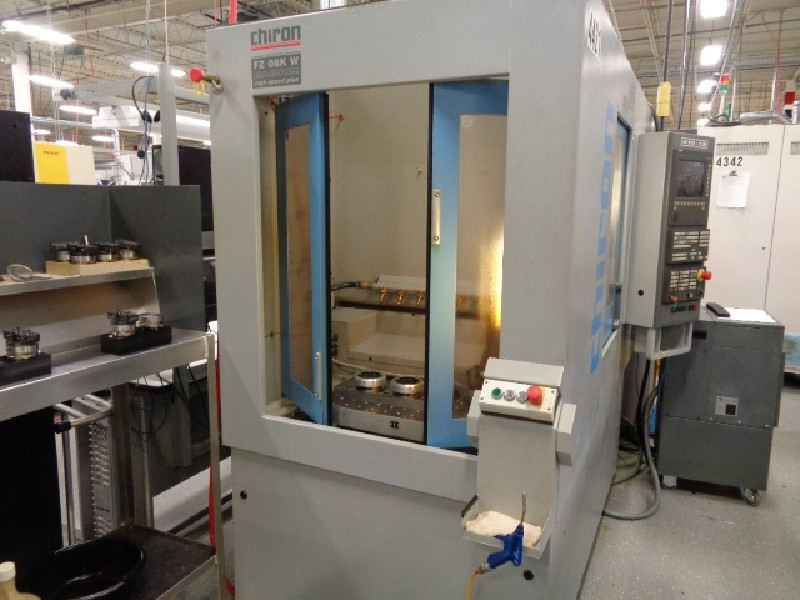

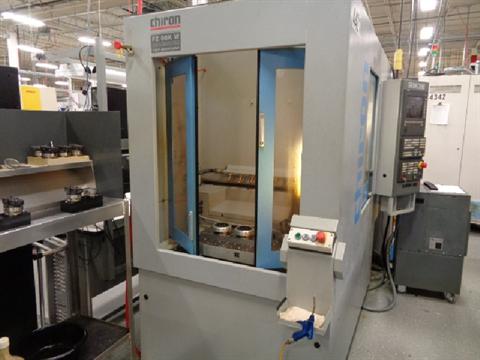

The 2010 Chiron FZ 08K W CNC Vertical Machining Center (Stock #1163) is a used CNC vertical machining center listed by Advantage Products Inc. in Corcoran, Minnesota. Key specifications: X Travel 17.71"; Y Travel 10.63"; Z Travel 12.2"; Spindle Speeds 30,000 RPM. Included: Siemens 840D Control, Coolant Thru Spindle, Fire Suppression System, Spindle Chiller, RS 232, and more (see the full list below). This machine is no longer available.

Specifications · Stock #1163

Work Piece Surface	25.98" X 13.77" (2 Pallets)
X Travel	17.71"
Y Travel	10.63"
Z Travel	12.2"
Spindle Speeds	30,000 RPM
Spindle Motor	7.2 kW
Spindle Taper	HSK-A 40
Tool Capacity	24
Workpiece Changing Device (Spin)	0° / 180°
Drill Capacity in St 60 with inserted Drill	Ø 16 mm
Thread Cutting	M 12
Max. Tool Diameter	47 mm
Max. Tool Length	160 mm
Max. Tool Weight	1.2 kg
Tool Change Time	0.8 s
Chip to Chip Time (approx.)	2.4 s
Max. Speed Thread Cutting	8,000 RPM
Load Capacity per Table Side	440 Lbs.

Included with machine

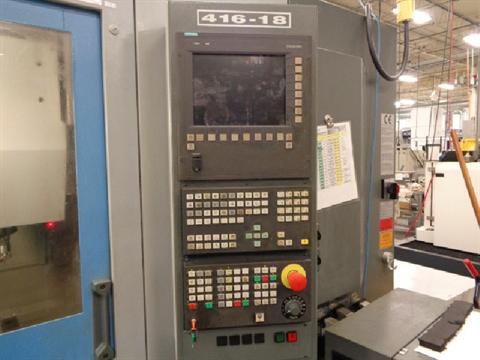

• Siemens 840D Control
• Coolant Thru Spindle
• Fire Suppression System
• Spindle Chiller
• RS 232
• Glass Scales (X,Y,Z)
• Thermal Control
• Thermal Drives
• Probe System
• Handwheel
• Cabinet Cooler
• Fixture Plus
• Additional Offsets
• Auto Doors
• Auto Lube
• All Available Manuals
