About this machine

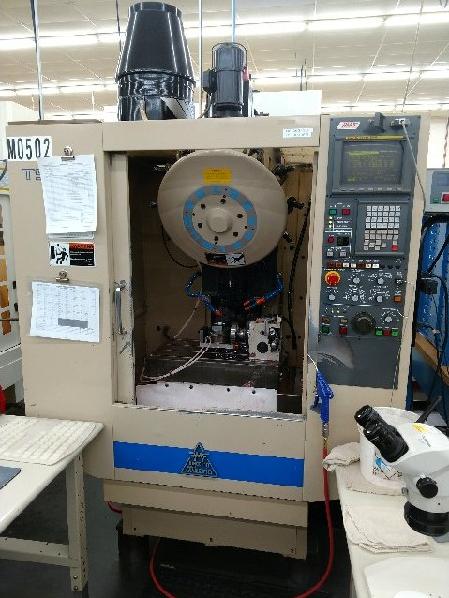

The 2001 Miyano TSV-35 CNC Drill & Tap Center (Stock #1212) is a used CNC vertical machining center listed by Advantage Products Inc. in Corcoran, Minnesota. Key specifications: X Travel 19.69"; Y Travel 14.96"; Z Travel 9.84"; Table Size 24" x 15". Included: Fanuc 21M Control, Coolant System, RS 232, Rigid Tapping, Royal Filter Mist System, and more (see the full list below). This machine is no longer available.
| Table Size | 24" x 15" |
|---|---|
| X Travel | 19.69" |
| Y Travel | 14.96" |
| Z Travel | 9.84" |
| Spindle Speeds | 8,000 RPM |
| Spindle Taper | BT 30 |
| Tool Capacity | 12 ATC |
| Spindle Motor | 5 / 7.5 HP |
| Rapid Traverse (X,Y) | 1181 IPM |
| Rapid Traverse (Z) | 945 IPM |
| Chip to Chip | 2.5 Sec |
| Machine Dimensions | 59" LR x 74" FB x 107" H |
| Machine Weight | 5,300 Lbs. |
Included with machine

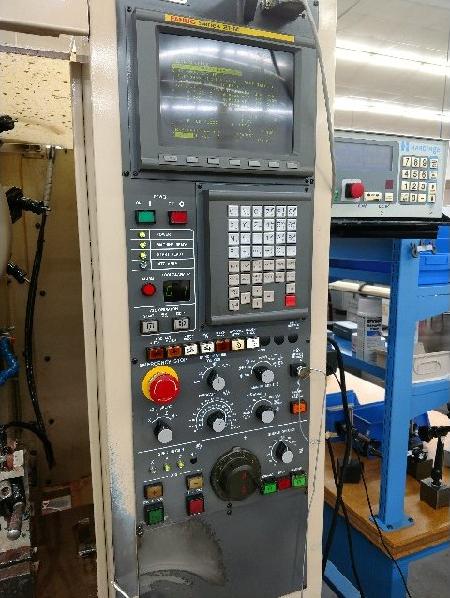

- Fanuc 21M Control
- Coolant System
- RS 232
- Rigid Tapping
- Royal Filter Mist System
- All Available Manuals
FAQ
Common questions
What are the travels of the 2001 Miyano TSV-35 CNC Drill & Tap Center?
X 19.69", Y 14.96", Z 9.84". Table size 24" x 15".
What spindle and tool changer does it have?
Spindle speed 8,000 RPM, spindle taper BT 30, tool capacity 12 ATC.
What control does it use?
The listing shows: Fanuc 21M Control.
Is the 2001 Miyano TSV-35 CNC Drill & Tap Center still available?
No. This machine is no longer available. If you want something similar, tell us what you are looking for or call (763) 439-9347.
