About this machine

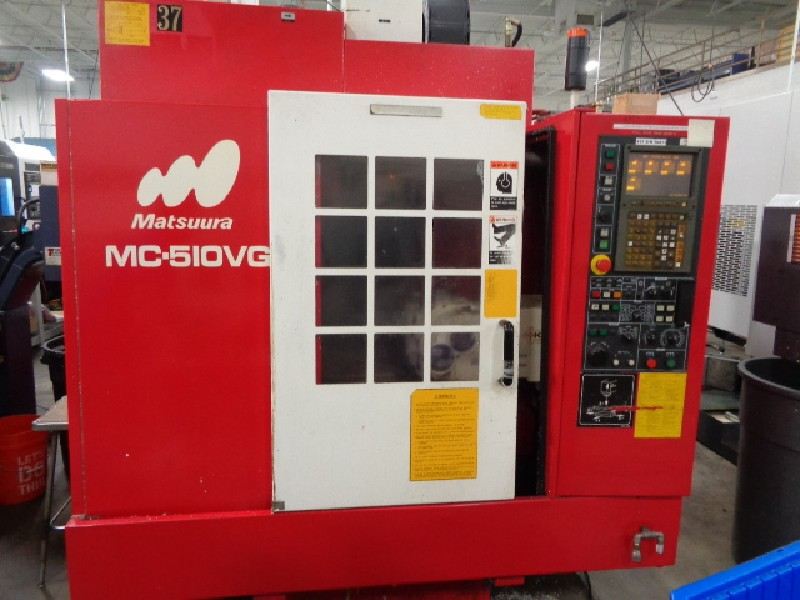

The 1998 Matsuura MC-510 VG CNC Vertical Machining Center (Stock #1150) is a used CNC vertical machining center listed by Advantage Products Inc. in Corcoran, Minnesota. Key specifications: X Travel 20"; Y Travel 15.7"; Z Travel 18.1"; Table Size 29.9" X 14.9". Included: Yasnac J300 CNC Control, Coolant System with High Pressure, Tsudakoma TRNC-151 5th Axis Indexer (2011), RS 232, Rigid Tapping, and more (see the full list below). This machine is no longer available.

Specifications · Stock #1150

Table Size	29.9" X 14.9"
X Travel	20"
Y Travel	15.7"
Z Travel	18.1"
Spindle Speeds	15,000 RPM
Spindle Taper	BT 30
Tool Capacity	30 ATC
Spindle Motor	5.5 / 3.7 kW
Rapid Traverse (X,Y)	1181 IPM
Rapid Traverse (Z)	945 IPM
Chip to Chip	5 Sec

Included with machine

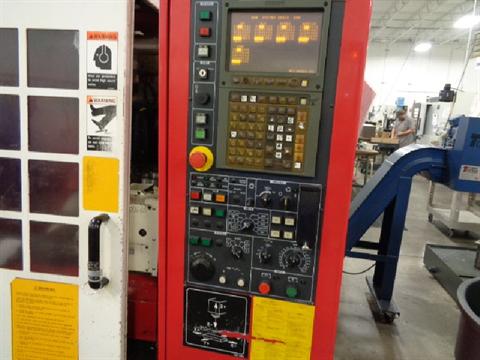

• Yasnac J300 CNC Control
• Coolant System with High Pressure
• Tsudakoma TRNC-151 5th Axis Indexer (2011)
• RS 232
• Rigid Tapping
• Spindle Chiller
• Mist Collector System
• Chip Conveyor
• All Available Manuals
• Machine Wired 200v/3Ph
