About this machine

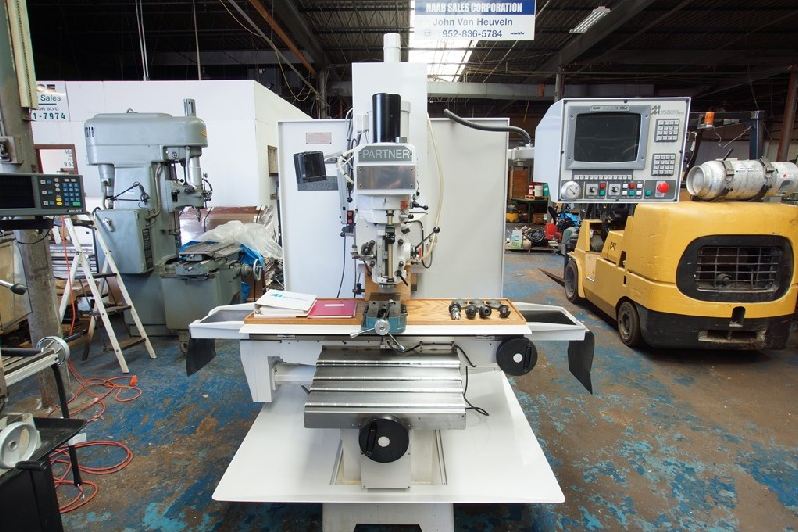

The 1997 Milltronics Partner MB20-A CNC 3 Axis Milling Center (Stock #1205) is a used CNC vertical machining center listed by Advantage Products Inc. in Corcoran, Minnesota. Key specifications: X Travel 40"; Y Travel 20"; Z Travel 24"; Table Size 54" X 16". Included: Centurion VI CNC Control, Rigid Tapping, Mitutoyo Z Axis DRO, Cat 40 Spindle, Work Light, and more (see the full list below). This machine is no longer available.

Specifications · Stock #1205

Table Size	54" X 16"
X Travel	40"
Y Travel	20"
Z Travel	24"
Quill Travel	6"
Spindle Speeds	60 - 4,000 RPM
Spindle Taper	CAT #40
Spindle Motor	10 / 7.5 HP
Spindle Nose to Table Top	3.75" - 27.75"
Rapid Traverse Rates (X & Y / Z)	500 / 300 IPM
Quill Diameter	4.125"
Machine Dimensions (L x W)	129" x 78"
Weight	7,000 lbs.

Included with machine

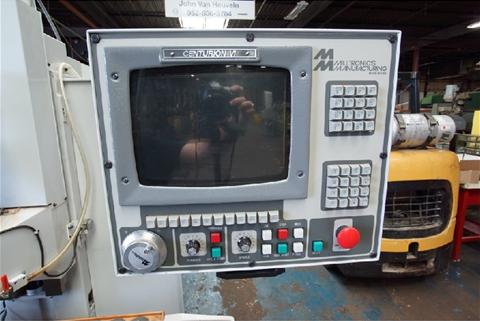

• Centurion VI CNC Control
• Rigid Tapping
• Mitutoyo Z Axis DRO
• Cat 40 Spindle
• Work Light
• Auto Way Lube
• Power Draw Bar
• Conversational & G-Code Programming
• 3.5" Floppy Disc Drive
• Stainless Steel Y-Axis Way Covers
• Heavy Duty Box Way Construction
• Coolant Pump
• All Available Manuals
