STOCK #166919971997 Fadal VMC 3016 CNC Vertical Machining Center
- X Travel
- 30"
- Y Travel
- 16"
- Z Travel
- 20"
About this machine

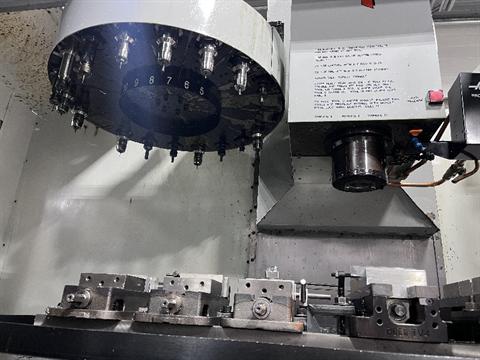

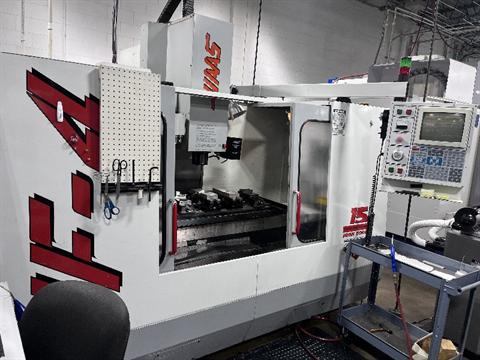

The 1997 Haas VF-4 CNC Vertical Machining Center (Stock #1665) is a used CNC vertical machining center listed by Advantage Products Inc. in Corcoran, Minnesota. Key specifications: X Travel 50"; Y Travel 20"; Z Travel 25"; Table Size 52" x 18". Included: Haas CNC Control, Coolant System, RS 232, (5) Axis Capabilities, All Available Manuals, and more (see the full list below).
| Table Size | 52" x 18" |
|---|---|
| X Travel | 50" |
| Y Travel | 20" |
| Z Travel | 25" |
| Spindle Speeds | 7,500 RPM |
| Spindle Taper | CAT40 |
| Tool Capacity | 20 ATC |
| Spindle Motor | 15 HP |
| Weight | 13,500 Lbs. |
| Dimensions | 126" x 110" x 118" |
Included with machine

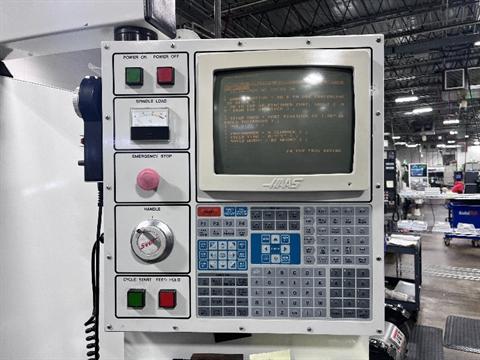

- Haas CNC Control

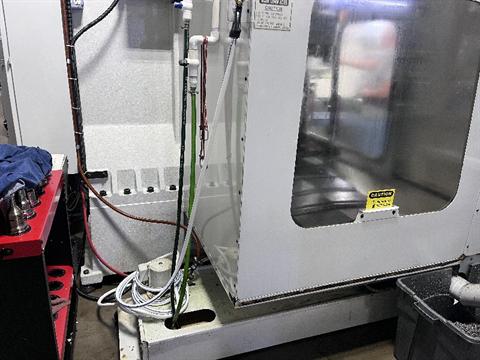

- Coolant System
- RS 232
- (5) Axis Capabilities
- All Available Manuals

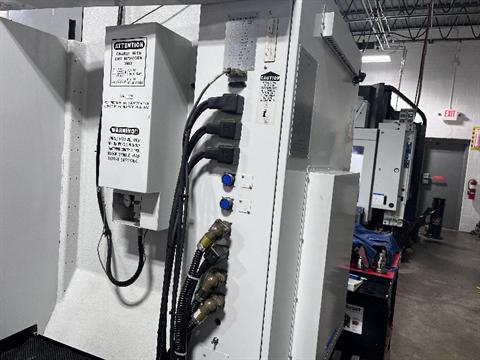

- Machine Wired 208 / 230v/3Ph
Buying a used machine? Read our inspection checklist and ask about anything it covers: a running demonstration, hours, alarm history and control backups.
FAQ
Common questions
What are the travels of the 1997 Haas VF-4 CNC Vertical Machining Center?
X 50", Y 20", Z 25". Table size 52" x 18".
What spindle and tool changer does it have?
Spindle speed 7,500 RPM, spindle taper CAT40, tool capacity 20 ATC.
What electrical supply does it need?
As recorded on the listing: Wired 208 / 230v/3Ph. Confirm against your plant supply before purchase.
What control does it use?
The listing shows: Haas CNC Control.
How do I get a price on Stock #1665?
Use the quote form on this page or call (763) 439-9347. Prices are not posted on the listing.
