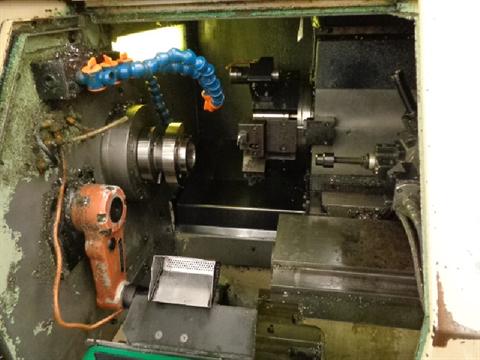

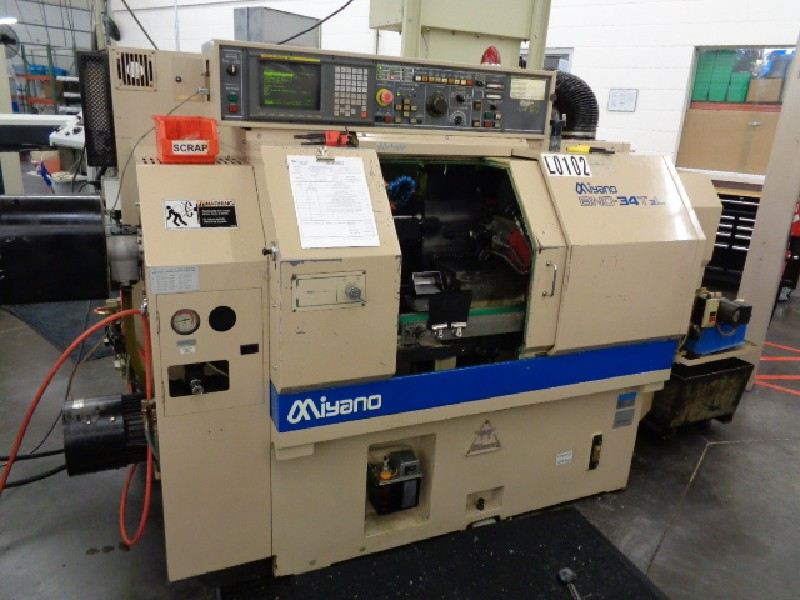

Miyano BND 34T CNC Lathe & Barfeed - Stock #1202, photo 1 of 2

About this machine

The Miyano BND 34T CNC Lathe & Barfeed (Stock #1202) is a used CNC turning center listed by Advantage Products Inc. in Corcoran, Minnesota. Key specifications: Spindle Speeds 170 - 5,000 RPM; Spindle Motor 7.5 HP; Max Turning Diameter 4.75"; Max Work Piece Diameter 1.312" (Bar). Included: Fanuc 18-T CNC Control, 16C Collet Chuck, Misc. Live Tool Holders, LNS Hydrobar Barfeed, 15 Degree C Axis on Spindle, and more (see the full list below). This machine is no longer available.

Specifications · Stock #1202
Max Turning Diameter4.75"
Max Work Piece Diameter1.312" (Bar)
Min Work Piece Diameter0.5"
Max Turning Length7"
X Axis Travel4"
Z Axis Travel11.05"
Spindle Bore (ID Draw Tube)1.417"
Spindle Speeds170 - 5,000 RPM
Spindle Motor7.5 HP
Rapid Traverse (X & Z)472 IPM
(2) Turret Capacity8 & 6 Positions Each
Live Tool Spindle Speeds133 - 4,000 RPM
Approx. Weight8,000 lbs.
Approx. Floor Space (+ Bar Feed)59" X 100" X 67"

Included with machine

  • Fanuc 18-T CNC Control
  • 16C Collet Chuck
  • Misc. Live Tool Holders
  • LNS Hydrobar Barfeed
  • 15 Degree C Axis on Spindle
  • High Pressure Coolant System
  • Mist Buster Filtration System
  • Parts Conveyor
  • RS232
  • All Available Manuals
Machine wanted

Looking for a machine like this?

This opens your email app with the request filled in, addressed to sales@advantagecnc.com.

Prefer to talk? Call (763) 439-9347.

FAQ

Common questions

What spindle and tool changer does it have?

Spindle speed 170 - 5,000 RPM.

What control does it use?

The listing shows: Fanuc 18-T CNC Control.

Is the Miyano BND 34T CNC Lathe & Barfeed still available?

No. This machine is no longer available. If you want something similar, tell us what you are looking for or call (763) 439-9347.
