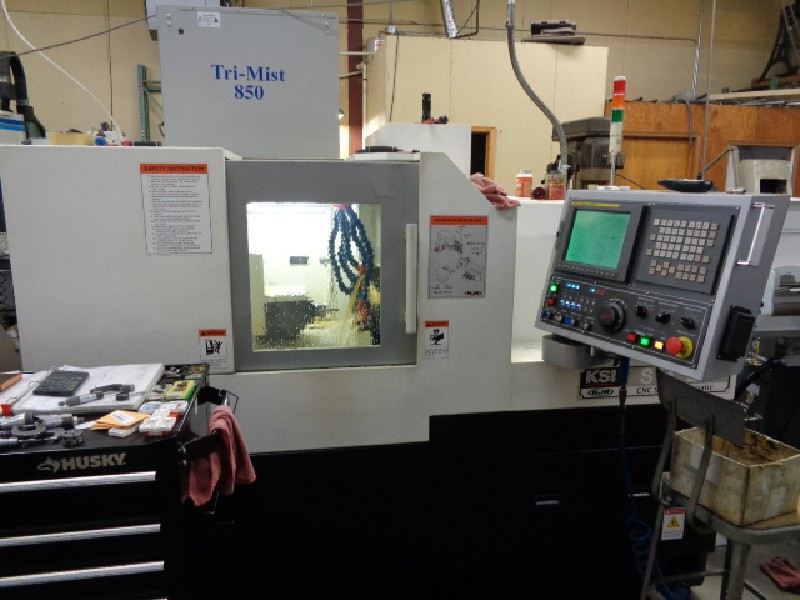

2009 KSI SM20 CNC Swiss Turning Center - Stock #1144, photo 1 of 2

About this machine

The 2009 KSI SM20 CNC Swiss Turning Center (Stock #1144) is a used CNC turning center listed by Advantage Products Inc. in Corcoran, Minnesota. Key specifications: Bar Capacity 20 mm; Max Machining Length 5.31"; Spindle Speeds (Main) 10,000 RPM; Spindle Speeds (Sub) 8,000 RPM. Included: Fanuc 18iTB Control, Live Tooling, 1,000 PSI Coolant, Tri-Mist 850, Sub Spindle, and more (see the full list below). This machine is no longer available.

Specifications · Stock #1144
Bar Capacity20 mm
Max Machining Length5.31"
Spindle Speeds (Main)10,000 RPM
Spindle Speeds (Sub)8,000 RPM
Slide 1
Turning Tools5
Rotary Tools3 (6,000 RPM)
Slide 2
Turning Tools4
Back Slide
Turning Tools1
Spindle Motor (Main)3 HP
Spindle Motor (Sub)1.5 HP
Machine Dimensions52" x 39" x 65"
Weight3,960 Lbs.

Included with machine

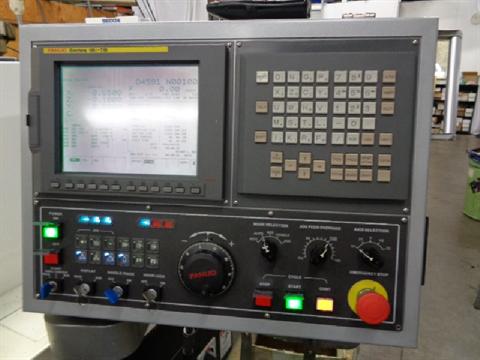

  • Fanuc 18iTB Control
  • Live Tooling
  • 1,000 PSI Coolant
  • Tri-Mist 850
  • Sub Spindle
  • BWG Barload Barfeed
  • Parts Catcher
  • LNS Chip Conveyor
  • RS232
  • Manuals
  • Wired 220V/3Ph
Machine wanted

Looking for a machine like this?

This opens your email app with the request filled in, addressed to sales@advantagecnc.com.

Prefer to talk? Call (763) 439-9347.

FAQ

Common questions

What electrical supply does it need?

As recorded on the listing: Wired 220V/3Ph. Confirm against your plant supply before purchase.

What control does it use?

The listing shows: Fanuc 18iTB Control.

Is the 2009 KSI SM20 CNC Swiss Turning Center still available?

No. This machine is no longer available. If you want something similar, tell us what you are looking for or call (763) 439-9347.
