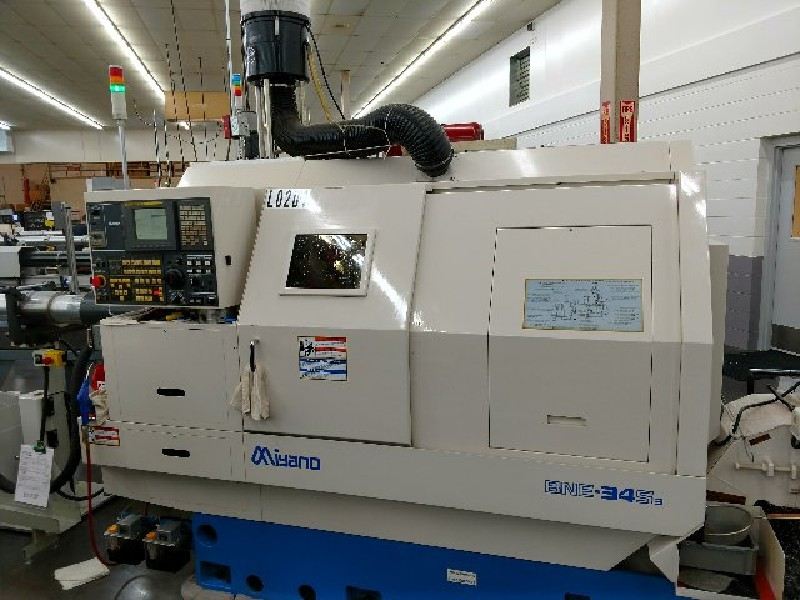

2008 Miyano BNE 34S3 CNC Lathe & Barfeed - Stock #1211, photo 1 of 2

About this machine

The 2008 Miyano BNE 34S3 CNC Lathe & Barfeed (Stock #1211) is a used CNC turning center listed by Advantage Products Inc. in Corcoran, Minnesota. Key specifications: SP1 3.543"; SP2 3.543"; Turret 2. Included: Fanuc 18i-TB CNC Control, 16C Collet Chuck (Main), 5C Collet Chuck (Sub), Misc. Live Tool Holders, LNS Super Hydrobar Barfeed, and more (see the full list below). This machine is no longer available.

Specifications · Stock #1211
Max Work Length
SP13.543"
SP23.543"
Max Blank Diameter (Power Chuck)
SP11.338"
SP21.338"
Spindle Speeds
SP167 - 5,000 RPM
SP267 - 5,000 RPM
Spindle Draw Tube
SP11.417"
SP21"
Turret2
Upper Turret12 Position
Lower Turret10 Position
X1 Axis (Upper Turret)5.905"
Z1 Axis (Upper Turret)14.96"
X2 Axis (Lower Turret)4.527"
X2 Axis (Lower Turret)4.921"
B Axis17.716"
Live Tools Upper Turret6 Max
Live Tools Lower Turret5 Max
Live Tool Speed (Upper & Lower)0 - 4,000 RPM
Foot Print (Plus Bar Feed)102.44" X 75.196
Height (Add 42" for Royal Filter)76.77"
Weight:13,640 lbs.

Included with machine

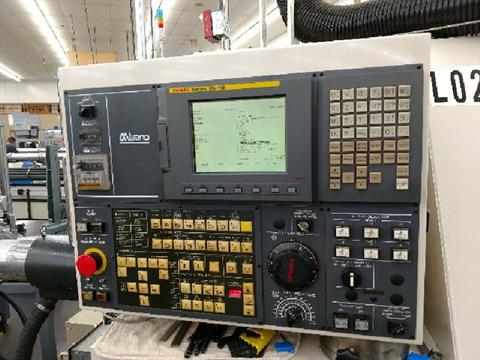

  • Fanuc 18i-TB CNC Control
  • 16C Collet Chuck (Main)
  • 5C Collet Chuck (Sub)
  • Misc. Live Tool Holders
  • LNS Super Hydrobar Barfeed
  • Full C Axis on both Spindle
  • High Pressure Coolant System
  • Royal Filtration System
  • Parts Conveyor
  • Fire Suppression System
  • RS232
  • Dainkin Chiller
  • Cut off Detection
  • All Available Manuals
