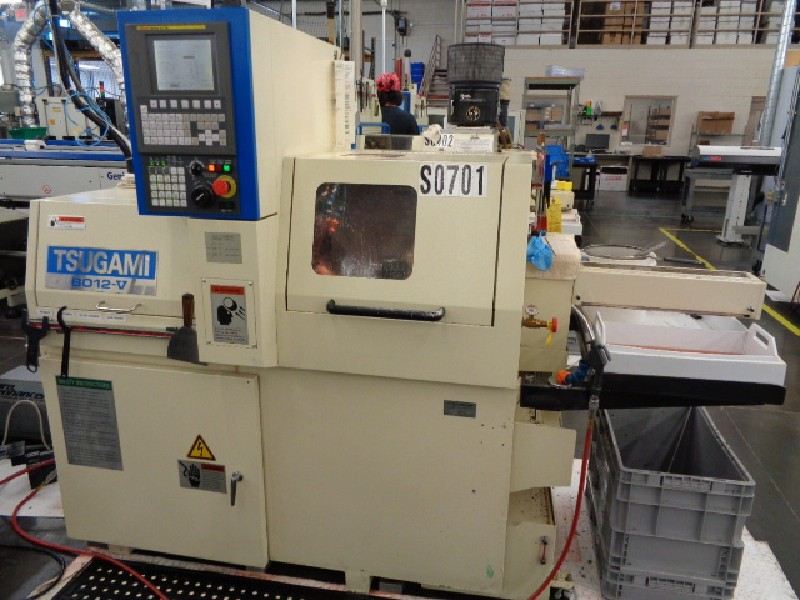

2006 Tsugami B012-V CNC Swiss Turning Center - Stock #1153, photo 1 of 2

About this machine

The 2006 Tsugami B012-V CNC Swiss Turning Center (Stock #1153) is a used CNC turning center listed by Advantage Products Inc. in Corcoran, Minnesota. Key specifications: Bar Capacity 12 mm; Max Machining Length (80mm: Rotary guide bushing) 210 mm; Max Main Spindle Drilling Diameter Ø7; Max Main Spindle Tapping Diameter M6 X 1. Included: Fanuc 0i-TC Control, (2) Live Cross Drilling Stations, Iemca Genius 112 Barfeed, High Pressure Coolant System, Fire Suppression System, and more (see the full list below). This machine is no longer available.

Specifications · Stock #1153
Bar Capacity12 mm
Max Machining Length (80mm: Rotary guide bushing)210 mm
Max Main Spindle Drilling DiameterØ7
Max Main Spindle Tapping DiameterM6 X 1
Max Back Spindle Barstock DiameterØ12
Max Back Spindle Drilling DiameterØ7
Max Back Spindle Tapping DiameterM6 x 1
Max Cross Drilling Diameter (OP.)Ø6
Max Cross Tapping Diameter (OP.)M5 X 0.8
Spindle Speeds (Main)200 - 12,000 RPM
Spindle Speeds (Sub)200 - 12,000 RPM
Tool Storage Capacity17
Tool Size12mm x 12mm x 85mm
Machine Dimensions65" x 41" x 67"
Weight3,970 Lbs.

Included with machine

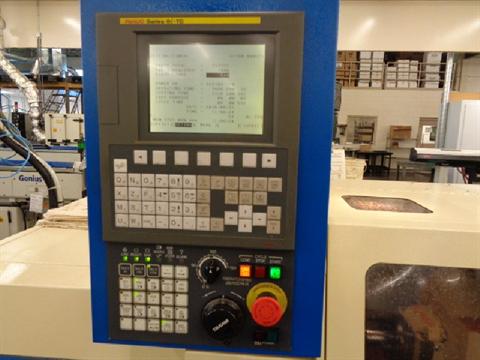

  • Fanuc 0i-TC Control
  • (2) Live Cross Drilling Stations
  • Iemca Genius 112 Barfeed
  • High Pressure Coolant System
  • Fire Suppression System
  • Parts Conveyor
  • RS232
  • All Available Manuals and Tooling
