About this machine

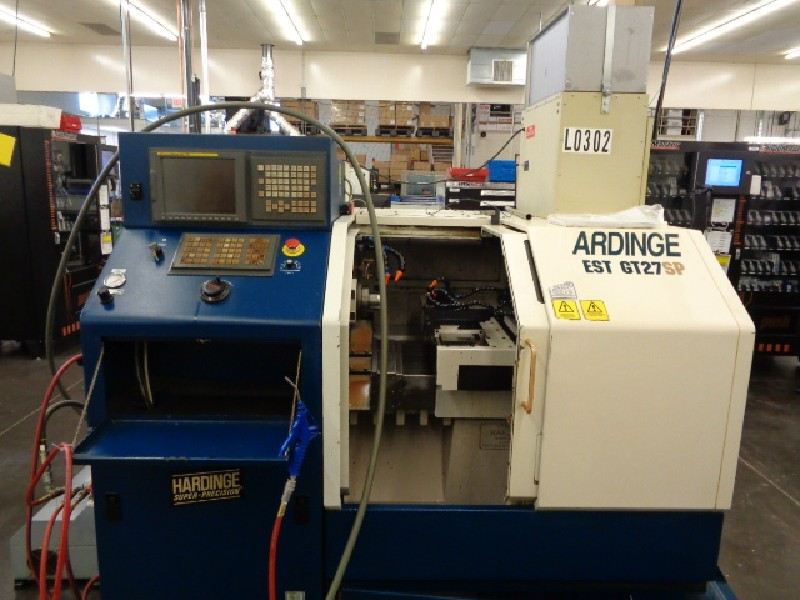

The 2004 Hardinge Quest GT27 SP CNC Gang Tool Turning Center (Stock #1181) is a used CNC turning center listed by Advantage Products Inc. in Corcoran, Minnesota. Key specifications: Spindle Speeds 80 - 8,000 RPM; Spindle Motor 5 HP; Max Work Piece Diameter 1.062"; Swing Diameter 11.760". Included: Fanuc 21i-TB CNC Control, Expanded Memory, Parts Catcher, Mist Collector, 5C Collet Chuck, and more (see the full list below). This machine is no longer available.
| Max Work Piece Diameter | 1.062" |
|---|---|
| Swing Diameter | 11.760" |
| (X) Axis Travels | 11.968" (304mm) |
| (Z) Axis Travels | 11.062" (281 mm) |
| Spindle Bore | 27 mm |
| Spindle Speeds | 80 - 8,000 RPM |
| (X) Axis Rapid Traverse | 708 IPM |
| (Z) Axis Rapid Traverse | 945 IPM |
| Spindle Motor | 5 HP |
| Weight | 5,700 Lbs. |
| Floor Space | 70" LR X 58.7" FB X 62" H |
| Electrical | 230v / 3Ph /60Hz |
Included with machine

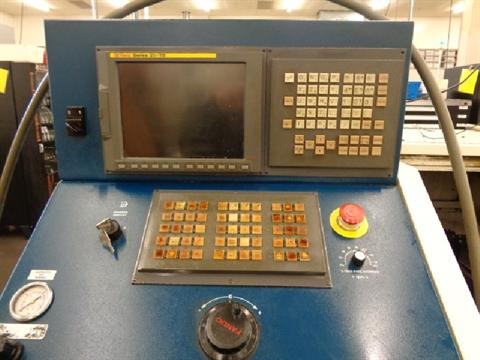

- Fanuc 21i-TB CNC Control
- Expanded Memory
- Parts Catcher
- Mist Collector
- 5C Collet Chuck
- High Pressure Coolant System
- Misc. Tool Holders
- All Available Manuals
FAQ
Common questions
What spindle and tool changer does it have?
Spindle speed 80 - 8,000 RPM.
What electrical supply does it need?
As recorded on the listing: 230v / 3Ph /60Hz. Confirm against your plant supply before purchase.
What control does it use?
The listing shows: Fanuc 21i-TB CNC Control.
Is the 2004 Hardinge Quest GT27 SP CNC Gang Tool Turning Center still available?
No. This machine is no longer available. If you want something similar, tell us what you are looking for or call (763) 439-9347.
