Mazak Integrex e-650HS/2000 Mill-Turn CNC Turning Center
- Bar Capacity
- 2.6"
- Max Swing Over Bed
- 36.2"
- Turning Diameter
- 36.2"
About this machine

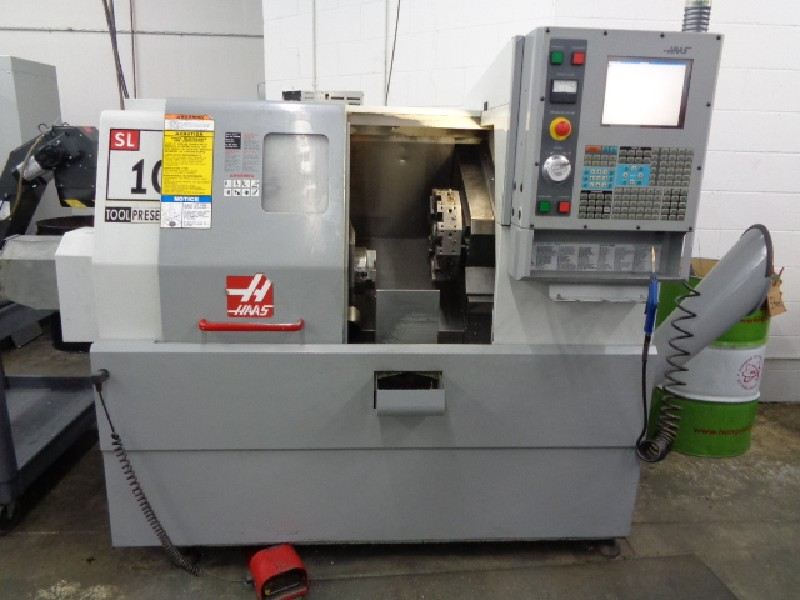

The 2004 Haas SL10 CNC Lathe (Stock #1265) is a used CNC turning center listed by Advantage Products Inc. in Corcoran, Minnesota. Key specifications: Max Swing Over Bed 16.25"; Max Work Piece Diameter 10"; Max Turning Length 14"; X Axis Travel 6.25". Included: Haas CNC Control, QuickCode, Chip Auger, (3) Jaw Chuck & 5C Collet, Tool Presetter, and more (see the full list below). This machine is no longer available.
| Max Swing Over Bed | 16.25" |
|---|---|
| Max Work Piece Diameter | 10" |
| Max Turning Length | 14" |
| X Axis Travel | 6.25" |
| Z Axis Travel | 14" |
| Rapid Traverse | 1,200 IPM |
| Spindle Nose | A2-5 |
| Spindle Bore | 2.0" |
| Spindle Speeds (2 Speed Geared) | 6,000 RPM |
| Turret Capacity | 12 Position |
| Machine Dimensions | 96" x 54" x 70" |
| Machine Weight | 4.000 Lbs. |
Included with machine

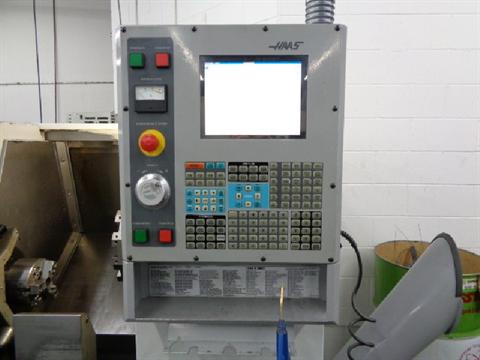

- Haas CNC Control
- QuickCode
- Chip Auger
- (3) Jaw Chuck & 5C Collet
- Tool Presetter
- Barfeed Interface
- Parts Catcher
- Auxiliary Coolant Tank
- Bar Supports
- All Available Manuals
FAQ
Common questions
What control does it use?
The listing shows: Haas CNC Control.
Is the 2004 Haas SL10 CNC Lathe still available?
No. This machine is no longer available. If you want something similar, tell us what you are looking for or call (763) 439-9347.
